Autoclave: Principles, Parts, Types and Application

Autoclave

Introduction

  • A unique instrument for sterilization, an autoclave kills all kinds of microbial life, including bacteria, viruses, fungi, and spores.
  • It functions by using moist heat under pressure, often in the form of saturated steam. Although higher temperatures and pressures may be used for some applications, the typical conditions for successful sterilization are a temperature of 121°C and a pressure of 15psi for 15–20 minutes.
  • Maintaining sterile environments and tools is essential in industries like microbiology, medicine, pharmaceuticals, biotechnology, and research labs, where autoclaves are indispensable.
  • They are used to sterilize a variety of materials, such as culture media, surgical tools, laboratory glassware, and contaminated waste.
  • Autoclaves provide a higher degree of sterilization than dry heat or chemical disinfectants because they employ high-pressure steam. Their efficiency, safety, and capacity for sterilizing large quantities make them essential tools in both industrial and clinical environments.

Principles

  • The principle behind an autoclave is that it uses pressurized steam to sterilize with moist heat, killing all microbes, including tenacious bacterial spores. Under pressure, you can heat water beyond its usual boiling point (100°C); for example, at 15psi, the temperature usually reaches 121°C, which makes sterilization more efficient.
  • The steam penetrates materials and causes coagulation and denaturation of microbial proteins, leading to cell death. One of the most dependable methods for achieving complete microbial destruction is the autoclave, which guarantees sterilization by sustaining the necessary temperature and pressure for a predetermined period of time-typically between 15 and 20 minutes.

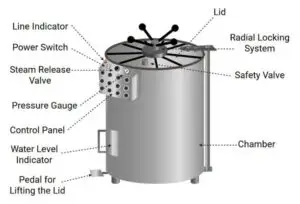

Parts of autoclave

Parts of autoclave

Lid

  • The autoclave’s top cover is the lid, which is essential for preserving pressure. Using clamps or a locking mechanism, it effectively seals the chamber during use.
  • Steam escape is prevented by gaskets in contemporary lids.
  • Certain versions have interlocking security features that prevent opening when subjected to pressure. It frequently includes accessories such the pressure gauge and safety valve.

Chamber

  • The majority of the material sterilization process takes place in the chamber, which is the principal inside area. Stainless steel is often used in its manufacture because of its ability to withstand extreme heat and pressure. Steam fills the space to kill microorganisms using wet heat.
  • The chamber’s dimensions change depending on the use of the autoclave. To ensure uniform sterilization, products must be placed correctly within.

Safety Valve

  • An essential part that prevents over-pressure is the safety valve. If the pressure rises beyond acceptable levels, it will immediately release steam. This safeguards the autoclave from harm and accidents.
  • When the pressure returns to normal, it resets itself. Its proper operation is guaranteed by routine maintenance.

Pressure gauge

  • The autoclave chamber’s internal pressure is displayed by the pressure gauge. The user is able to track if the pressure levels are adequate and safe thanks to it. Usually indicated in psi (pounds per square inch) or bar units.
  • Some gauges also display the temperature that corresponds to the reading. It is necessary to confirm that the sterilization cycle was effective.

Steam Release Valve

  • The system also releases steam after sterilization and people know it as the exhaust or vent valve. Users use it to lower pressure gradually and securely. Aids in drying the contents by releasing moisture-laden steam.
  • There are manual release systems on some autoclaves, while others feature automated release systems. To prevent rapid depressurization, do not open it too quickly.

Control panel

  • The operation of the autoclave is controlled by the control panel. It has a digital interface or buttons for adjusting temperature, pressure, and duration.
  • Programmable cycles and error screens are included in modern models.
  • The sterilization process is made automated and simple to use by it. Frequently comes with warning lights or alarms that tell you the status of the system.

Water Level Indicator

  • This displays the quantity of water in the autoclave’s tank. Only enough water can produce steam for sterilization. Low levels might result in sterilization failure or harm the heating element.
  • Some autoclaves include alerts and sensors for automatically monitoring the water level. It aids the user in ensuring the unit’s proper operation and safety.

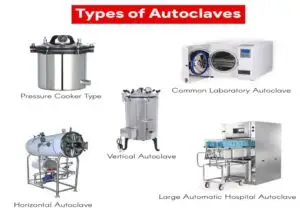

Types of Autoclaves

Types of Autoclaves

Pressure Cooker Autoclave

  • An inexpensive and straight forward method of sterilization frequently used in classrooms, fieldwork, and small labs is the pressure cooker autoclave. It sterilizes things like glassware, culture media, and small tools using pressurized steam (usually at about 15 psi), much like a kitchen pressure cooker.
  • These autoclaves are typically vertical and operated by hand, they are simple to use but have less capacity and control than more sophisticated autoclaves.
  • They work well for basic sterilization needs and are particularly helpful in areas where resources are scarce, even if they aren’t ideal for more complicated or high-volume sterilization requirements.

Common Laboratory Autoclave

  • Clinical, academic, and research laboratories frequently use the ubiquitous laboratory autoclave, a flexible sterilization device, for sterilizing culture media, biological waste, glassware, and instruments. Depending on the load, these autoclaves are often bench-top or vertical types that use steam under pressure, usually at 121°C and 15 psi, for 15–30 minutes.
  • They can employ gravity displacement or pre-vacuum cycles, which provide dependable sterilization for moderately complicated and nonporous goods.
  • Laboratory autoclaves, renowned for their simplicity, safety features, and somewhat small footprint, are indispensable for preserving aseptic environment in biomedical and microbiological research.

Automated Autoclave for Hospitals

  • Large automated hospital autoclaves are complete, high-capacity sterilization systems built to meet the stringent sterilization requirements of healthcare institutions. Usually, these autoclaves are horizontal, front-loading devices with sophisticated features including data logging, automated control panels, safety interlocks, and pre-vacuum and post vacuum cycles.
  • They sterilize surgical tools, linens, medical equipment, and huge quantities of bio-hazardous waste with great efficiency and accuracy.
  • These autoclaves play a crucial role in infection control in hospitals since they quickly and reliably process huge loads, ensuring that they completely sterilize all materials and keep them safe for patient care.

Horizontal autoclave

  • Hospitals, pharmaceutical industry, and large research facilities frequently employ large, front-loading horizontal autoclaves.. They have a large capacity and are excellent for sterilizing large amounts of media, surgical equipment, and bulky items.

Vertical autoclave

  • Vertical autoclaves are small, top loading devices that are perfect for microbiology labs, academic institutions, and small labs. They take up less space on the floor and are ideal for sterilizing culture media, glassware, and tiny laboratory instruments.
  • Depending on the model, both varieties may employ gravity or pre-vacuum techniques, but the size of the workspace and the scope of the operation often determine their choice.

Applications

  1. Microbiology, veterinary medicine, mycology, and other fields frequently employ autoclaves.
  2. Researchers may use it to sterilize a wide variety of materials, such as laboratory glass, laboratory equipment and tools, surgical materials like needles and seizures, heat-stable hand gloves, containers, closures, and more.
  3. The sterilization of biological media frequently involves autoclaving. Many pharmacopeias advise using autoclave to sterilize a large number of injectables.
  4. The disposal treatment and sterilization of waste materials that come from pathogenic sites like hospital waste is an increasing use of autoclaves.

Advantages

  1. Dry heat is less effective than an autoclave.
  2. It kills every kind of bacteria, fungus, and spore.
  3. Utilizing a large autoclave, we can sterilize one batch of materials.

Disadvantages

  1. Not appropriate for thermally labile materials.
  2. A typical cycle cannot eliminate pyrogens.
  3. You cannot use it to sterilize oils or powders.
